CD-1 Super Speedway Ignition System Kit 6000-6701K

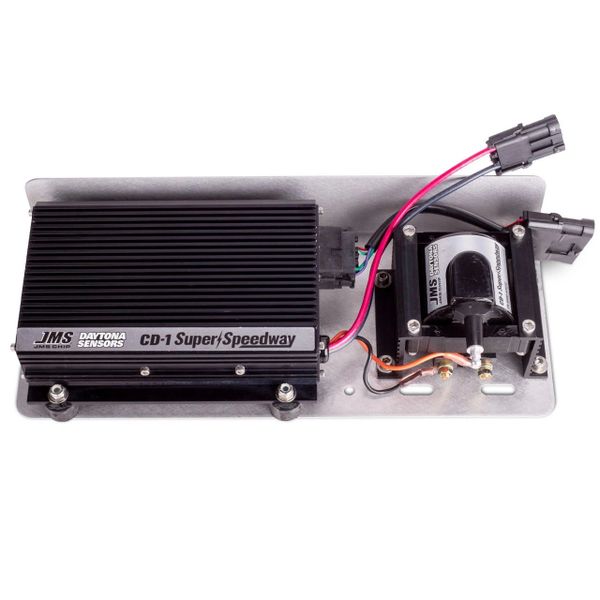

CD-1 Super Speedway ignition (complete system) p/n 6000-6701k Fully Assembled - Plug and play capacitive discharge ignition system that has been designed for racing. Includes: Assembled CD-1 Super Speedway ignition module p/n 6000-6700b CD-1 Super Speedway ignition coil p/n 6000-6700c CD-1 Super Speedway ignition wire harness p/n 6000-6700w and CD-1 Super Speedway mounting plate p/n 6000-6700p.

• 135 mj of spark energy output
• rpm limit - 6000 rpm(min) and 9900 rpm(max) adjustable in 100 rpm increments
• waterproof - encapsulated construction
• wiring - terminated into plug and play weather pack connectors (includes the opposite connectors and pins)
• compatible - All 8 cylinder engines that utilize either a magnetic pickup distributor or a four magnet crank trigger
• compact -  Ignition Module: 9.375" L x 3.625" W x 2.75" H. ---  Coil: 4.4" L  x 3.2" W x 3" H
• efficient - Less than 5A current draw at 8000 rpm
• designed for 16v power systems (8-20v) and reverse polarity protected
• JMS-daytona sensors p/n 6000-6701k is the approved ignition system for: southern super series, cars super late model tour, spears southwest tour series, american canadian tour and all dirt late model series

Ignition BOX CD1 Mounting Template: https://jmschip.com/content/CD1/CD1_new_mount_template.PDF

Catalog: https://jmschip.com/content/JMS_Catalog_Web.pdf
